Product Details
Place of Origin: China
Brand Name: REINFORCE
Certification: ISO9001
Model Number: REINFORCE-78
Payment & Shipping Terms
Minimum Order Quantity: 1000 square meter
Price: USD 1.7-3 /square meter
Packaging Details: steel strip six rolls each bundle
Delivery Time: 14-20 works day
Payment Terms: T/T
Supply Ability: 2000 Square meters per week
Product Name: |
6 Rolls Galvanized Offshore Pipeline Counterweight Welded Wire Mesh For Subsea Gas |
Product Keywords: |
Pipeline Coating Mesh For Oil And Gas |
Material: |
Cold Or Hot Galvanized Wire |
Wire Diameter: |
1.66 Mm, 1.7 Mm, 1.8 Mm, 2.0 Mm, 2.4 Mm, 2.85 Mm |
Hardness Range: |
485 N/Mm2-650 N/Mm2 |
Mesh Size: |
Customized |
Package: |
In Rolls Or As Per Customer's Request |
Mesh Opening Size: |
25.4 Mm X 67 Mm |
Mesh Type: |
Welded Type |
Mesh Width: |
190.5 Mm Or As Customer's Request |
Mesh Length: |
140 M/280 M Or As Customer's Request |
Sample: |
Free Sample To Test Quality |
Product Name: |
6 Rolls Galvanized Offshore Pipeline Counterweight Welded Wire Mesh For Subsea Gas |
Product Keywords: |
Pipeline Coating Mesh For Oil And Gas |
Material: |
Cold Or Hot Galvanized Wire |
Wire Diameter: |
1.66 Mm, 1.7 Mm, 1.8 Mm, 2.0 Mm, 2.4 Mm, 2.85 Mm |
Hardness Range: |
485 N/Mm2-650 N/Mm2 |
Mesh Size: |
Customized |
Package: |
In Rolls Or As Per Customer's Request |
Mesh Opening Size: |
25.4 Mm X 67 Mm |
Mesh Type: |
Welded Type |
Mesh Width: |
190.5 Mm Or As Customer's Request |
Mesh Length: |
140 M/280 M Or As Customer's Request |
Sample: |
Free Sample To Test Quality |

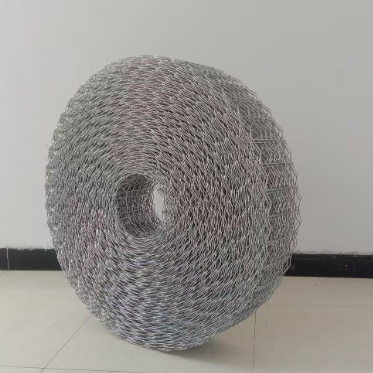

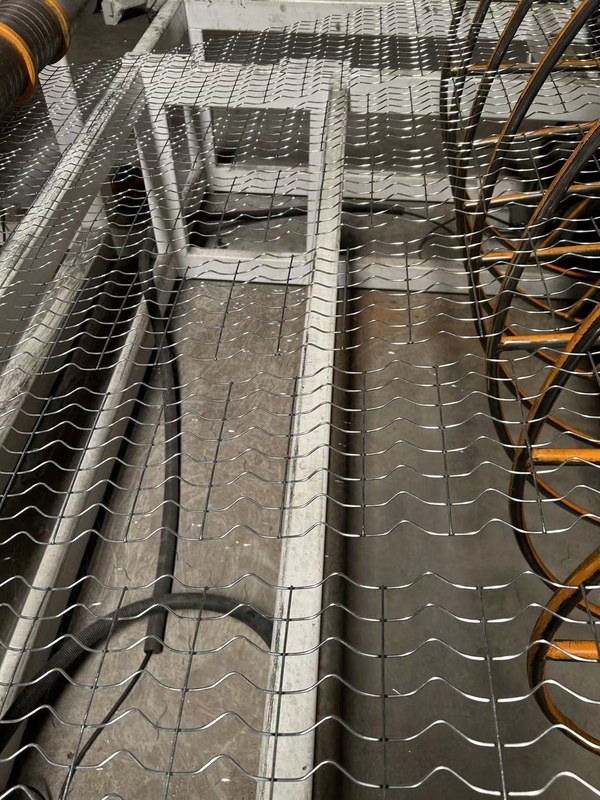

Galvanized Offshore Pipeline Counterweight Welded Wire Mesh is a factory-fabricated reinforced concrete structure. By welding the steel mesh to the concrete, it forms a high-strength counterweight layer, used for pipeline anti-floating or mechanical protection.
This mesh provides negative buoyancy to prevent pipeline uplift, and enhances pipeline impact and corrosion resistance, replacing traditional double-layer steel pipes while reducing steel usage and construction costs. Made of low-carbon steel wire or cold-rolled ribbed steel bars, the mesh is formed through automated welding to ensure structural stability. The counterweight layer thickness and density are customizable, offering high impact resistance and compliance with ISO 21809-5 and SY/T 7398 standards.
Optional anti-corrosion coatings (such as polymer coatings) are available to enhance resistance to acids, alkalis, and chloride ion penetration.
| Item | Line wire quantity | Line wire diameter | Cross wire diameter | Middle line wire pitch | Both sides line wire pitch | Cross wire pitch | Mesh width |
|---|---|---|---|---|---|---|---|
| HFRM-N | 6 | 2.3mm 2.5mm 2.6mm 2.85mm | 2mm 2.05mm | 25.4mm | 50.8mm | 67mm | 190.5mm |
| HFRM-T | 8 | 25.4mm | 25.4mm | 67mm | 190.5mm | - | - |
| HFRM-L | 8 | 25.4mm | 25.4mm | 92.4mm | 190.5mm | - | - |
| HFRM-W | 10 | 25.4mm | 25.4mm | 67mm | 241.3mm | - | - |
| Wire Diameter | Mesh | Width | Length |
|---|---|---|---|
| 2.0mm/2.0mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.2mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.4mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.7mm | 25.4mmx67mm | 190.5mm | 140m,280m |
Products can be customized according to customers' requirements.
HeBei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, RuiLian Industrial Zone B, ShuGuang East Street, Xicheng Industrial Zone, RaoYang County, HengShui City, HeBei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product, providing high-reliability protection solutions for global offshore oil and gas projects, and helping the safe operation and maintenance of energy infrastructure.
