Product Details
Place of Origin: China
Brand Name: REINFORCE
Certification: ISO9001
Model Number: REINFORCE-88
Payment & Shipping Terms
Minimum Order Quantity: 1000 square meter
Price: USD 1.7-3/ square meter
Packaging Details: steel strip six rolls each bundle
Delivery Time: 14-20 works day
Payment Terms: T/T
Supply Ability: 2000 Square meters per day
Product Name: |
Underwater Pipeline Anti-Crack Reinforced Mesh |
Key Words: |
Oil Pipeline Reinforced Welded Wire Mesh. |
Wire Diameter: |
2.0 Mm-2.7 Mm Etc. |
Material: |
High-quality Low-carbon Steel Wire |
Mesh Opening: |
25.4 Mm X 67 Mm Or 25.4 Mm × 92.4 Mm |
Hardness Range: |
485N/mm2-650N/mm2 |
Surface: |
Smooth, Bright And Clean |
Zinc Coating: |
40-60g/m2 |
Longitudinal Lines: |
6 Lines, 8 Lines, 10 Lines |
Standard Width: |
7.5 Inch (190.5 Mm) |
Product Name: |
Underwater Pipeline Anti-Crack Reinforced Mesh |
Key Words: |
Oil Pipeline Reinforced Welded Wire Mesh. |
Wire Diameter: |
2.0 Mm-2.7 Mm Etc. |
Material: |
High-quality Low-carbon Steel Wire |
Mesh Opening: |
25.4 Mm X 67 Mm Or 25.4 Mm × 92.4 Mm |
Hardness Range: |
485N/mm2-650N/mm2 |
Surface: |
Smooth, Bright And Clean |
Zinc Coating: |
40-60g/m2 |
Longitudinal Lines: |
6 Lines, 8 Lines, 10 Lines |
Standard Width: |
7.5 Inch (190.5 Mm) |

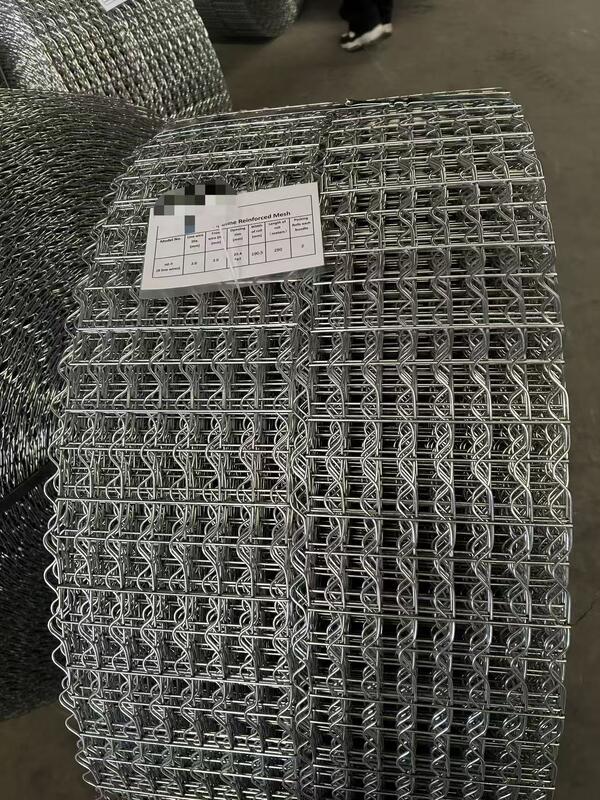

Underwater Pipeline Anti-Crack Reinforced Mesh
Underwater Pipeline Anti-Crack Reinforced Mesh Description:
Offshore pipeline counterweight welded wire mesh material is low carbon steel with galvanized coating. It can either be cold galvanized wire or hot dipped galvanized wire meeting to ASTM and the line wires are deeply crimped and then welded to form a wave structure, making it easy to be coated with concrete and then submerged in water or earth. It has excellent corrosion and rust resistant performance, preventing concrete weight coated pipeline from being damaged during installation and after it is in place.
Underwater Pipeline Anti-Crack Reinforced Mesh Specification:
| Product Name | Galvanized wire pipeline reinforced mesh |
| Material | hot dipped galvanized wire |
| Wire diameter | 1.6mm-2.85mm |
| Hole size | 25.4mmx67mm or special custom |
| Hardness range | 485N/mm2-650N/mm2 |
| Width per roll | 190.5mm or custom |
| Length per roll | 140mm,280mm or custom |
| Roll Diameter | 700mm-1100mm |
| Surface | Smooth, bright and clean |
| Lifespan | Above 20 years |
Normal Export Specifications Kinds:
| Wire Diameter | Mesh | Width | Length |
| 2.0mm/2.0mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.2mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.4mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.7mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| Products can be customized according to customers’ requirements. | |||
Underwater Pipeline Anti-Crack Reinforced Mesh production process:
Underwater Pipeline Anti-Crack Reinforced Mesh Features:
• High tensile strength, firm welding, not easy to break or deform
• Deep crimped design for superior concrete adhesion
• Good flexibility, easy to wrap around pipes during construction
• Hot-dip galvanized surface for strong corrosion resistance
• Stable performance under harsh marine and underground environments
• Uniform mesh opening, consistent quality, easy to install
Underwater Pipeline Anti-Crack Reinforced Mesh Applications:
Ø Subsea gas & oil pipeline
Ø Everglades gas pipeline
Ø River bottom gas & oil pipeline
Ø Water and wastewater pipeline
Ø Chemical processing pipeline
Ø Mining and ore processing pipeline
Our Company Profile:
Hebei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, Ruilian Industrial Zone B, Shuguang East Street, Xicheng Industrial Zone, Raoyang County, Hengshui City, Hebei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product. We also produce safety rope nets around platforms, steel gratings, and vibrating screens.
