Product Details
Place of Origin: China
Brand Name: REINFORCE
Certification: ISO9001
Model Number: REINFORCE-25
Payment & Shipping Terms
Minimum Order Quantity: 1000 square meter
Price: USD 1.7-3 /square meter
Packaging Details: steel strip six rolls each bundle
Delivery Time: 14-20 works day
Payment Terms: T/T
Supply Ability: 2000 Square meters per week
Product Name: |
Length 140 M Welded Galvanized Wire Pipeline Reinforced Mesh |
Key Words: |
Concrete Counterweight Coating Wire Mesh |
Material: |
Hot Dipped Galvanized |
Wire Diameter: |
2.0 Mm/2.2 Mm/2.3 Mm/2.7 Mm |
Package: |
Steel Strip Six Rolls Each Bundle |
Opening Size: |
25.4 Mm X 67 Mm |
Width Per Roll: |
190.5 Mm |
Length Per Roll: |
140 M , 280 M Or Custom |
Middle Line Wire Pitch: |
25.4 Mm |
Cross Wire Pitch: |
67 Mm Or 92.4 Mm |
Product Name: |
Length 140 M Welded Galvanized Wire Pipeline Reinforced Mesh |
Key Words: |
Concrete Counterweight Coating Wire Mesh |
Material: |
Hot Dipped Galvanized |
Wire Diameter: |
2.0 Mm/2.2 Mm/2.3 Mm/2.7 Mm |
Package: |
Steel Strip Six Rolls Each Bundle |
Opening Size: |
25.4 Mm X 67 Mm |
Width Per Roll: |
190.5 Mm |
Length Per Roll: |
140 M , 280 M Or Custom |
Middle Line Wire Pitch: |
25.4 Mm |
Cross Wire Pitch: |
67 Mm Or 92.4 Mm |
Length 140 M Welded Galvanized Wire Pipeline Reinforced Mesh For Subsea Gas And Oil Pipeline
Welded Galvanized Wire Pipeline Reinforced Mesh Description:

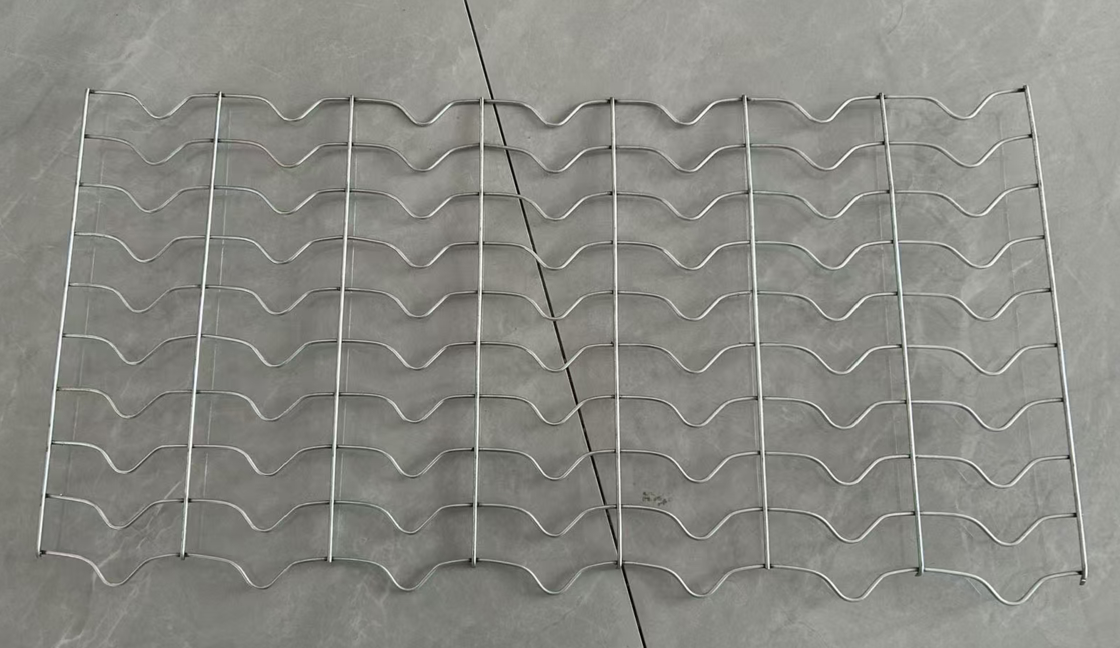

Pipeline reinforced galvanized steel mesh is a line wire crimped special welded mesh. It plays the role of reinforcement,counterweight and protection for offshore oil and gas pipelines.
Its material is low carbon steel with galvanized coating.It can either be cold galvanized wire or hot dipped galvanized wire meeting to ASTM and the line wires are deeply crimped and then welded to form a wave structure,making it easy to be coated with concrete and then submerged in water or earth. It has excellent corrosion and rust resistant performance,preventing concrete weight coated pipeline from being damaged during installation and after it is in place.
Welded Galvanized Wire Pipeline Reinforced Mesh Specification:
|
Product Name |
Welded Galvanized Wire Pipeline Reinforced Mesh |
|
Material |
hot dipped galvanized wire |
|
Technique |
Welded type |
|
Wire diameter |
2.0mm/2.2mm/2.4mm/2.7mm and so on |
|
Mesh Hole size |
25.4mm x 67mm |
|
Hardness Range |
485N/mm2~650N/mm2 |
|
Width dimensions |
190.5mm |
|
Length dimensions |
140m/280m |
|
Exposed Wire Edge |
≤ 2.5 mm |
|
Roll Diameter |
700mm-1150mm |
|
Features |
Bright and uniform zinc coating, strong welded |
|
Brand Name |
Reinforce |
|
Supply Ability |
2000 square meters per week |
Welded Galvanized Wire Pipeline Reinforced Mesh Four Types:
Welded Galvanized Wire Pipeline Reinforced Mesh Features:
Welded Galvanized Wire Pipeline Reinforced MeshApplications:
Pipe reinforcement mesh is used to reinforce subsea oil and gas pipelines,providing additional strength and durability to the pipeline. Everglades natural gas pipelines: CWCmesh can be used to protect the Everglades natural gas pipeline from external factors such as erosion, corrosion,or wildlife damage.Riverbed oil and gas pipelines: Pipe reinforcement mesh provides additional support and reinforcement to distribute the weight of the pipeline more evenly across the river or stream bed. This can help reduce the risk of damage to the river or stream bed.
Welded Galvanized Wire Pipeline Reinforced Mesh Packing and Shipping:
Product Packaging:
Our Pipe coating mesh come in Bundle or pallet that is easy to load and unload.
Shipping:
We offer free shipping on all orders of Pipe coating mesh. Our standard shipping method is ground shipping. Orders typically ship within 1-3 business days and arrive within 5-7 business days. Expedited shipping options are available for an additional cost.
