Product Details
Place of Origin: China
Brand Name: REINFORCE
Certification: ISO9001
Model Number: RE-STEEL 3
Payment & Shipping Terms
Minimum Order Quantity: 50 square meters
Price: USD 15 / square meter
Packaging Details: After the steel belt is tied, it is placed on the pallet.
Delivery Time: 14-20 work days
Payment Terms: T/T
Supply Ability: 5000 square meters thirty days
Product Name: |
1.2 M Width Galvanized Walkway Floor Gratings |
Key Words: |
Galvanized Steel Gratings |
Material: |
Aluminum，carbon Steel,stainless Steel |
Bearing Bar Type: |
Rectangular, I Type And T Type |
Cross Bar Type: |
Square Twisted Bars Or Round Bars |
Technique: |
Press Welded, Manual Welded |
Bearing Bar Pitch: |
25,30,34,40 Mm, Etc. |
Cross Bar Pitch: |
30,50,76,100 Mm, Etc. |
Bearing Bar Thickness: |
3-80 Mm |
Bearing Bar Width: |
25-15 Mm |
Product Name: |
1.2 M Width Galvanized Walkway Floor Gratings |
Key Words: |
Galvanized Steel Gratings |
Material: |
Aluminum，carbon Steel,stainless Steel |
Bearing Bar Type: |
Rectangular, I Type And T Type |
Cross Bar Type: |
Square Twisted Bars Or Round Bars |
Technique: |
Press Welded, Manual Welded |
Bearing Bar Pitch: |
25,30,34,40 Mm, Etc. |
Cross Bar Pitch: |
30,50,76,100 Mm, Etc. |
Bearing Bar Thickness: |
3-80 Mm |
Bearing Bar Width: |
25-15 Mm |

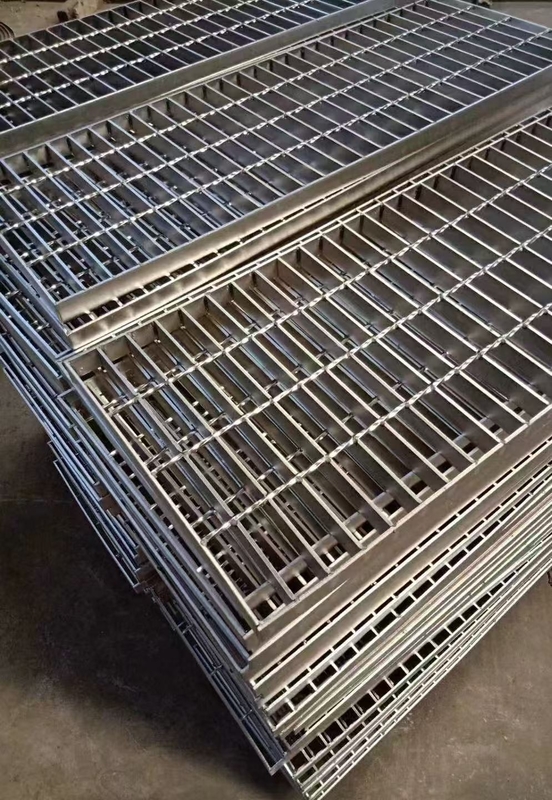

1.2 M Width Galvanized Walkway Floor Gratings
Galvanized Walkway Floor Gratings Description:
Galvanized Walkway Floor Gratings are widely used in the oil and gas industry, petro-chemical industry, mining industry and in power stations. When there's platform flooring has to be changed frequently, press welded grating is a good choice.
Serrated Swage-locked Steel Grating Specifications:
|
Product name |
Galvanized Walkway Floor Gratings |
|
Material |
Q195 |
|
Technique |
Press Welded, Manual Welded |
|
Bearing Bar Pitch |
25,30,34,40mm, etc. |
|
Cross Bar Pitch |
30,50,76,100mm, etc. |
|
Bearing Bar Thickness |
3-80mm |
|
Bearing Bar Width |
25-150mm |
|
Surface Treatment |
Galvanized |
|
Colour |
Silver |
|
Style |
Serrated, Flat |
Common Product Specifications (In mm)
|
Bearing bar pitch |
Cross-bar pitch |
Specification of bearing bar (width x thickness) |
|||||
|
20x3 |
25X3 |
32X3 |
40X3 |
20X5 |
25X5 |
||
|
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
|
60 |
50 |
G203/60/50 |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
|
Bearing bar pitch |
Cross-bar pitch |
Specification of bearing bar (width x thickness) |
|||||
|
32x5 |
40x5 |
45x5 |
50x5 |
55X5 |
60X5 |
||
|
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
Serrated Swage-locked Steel Grating Features:
Serrated Swage-locked Steel Grating Applications:
Steel gratings are widely used as stair tread, walkway, optional platform, catwalk stage, floor, showcase ground, ceiling, window, sun visor, fountain panel, ramp, lifting track, tree cover, trench cover, drainage cover, industrial truck, bridge construction, decorative wall, security fence, transformer reservoir, chair, shelve, stand, observation tower, baby carriage, substation fire pit, clean area panel, split obstacle or screen, food panel, etc.
